Királyszentistván - Veszprém Region - Hungary
The first.
The Kindest to my Heart.
Scroll ↓
The goal was to build a Mechanical Treatment System for 120 000 tons/year. The input material is communal house waste with high organic fraction. The project focused on the halogen fraction removal with NIR optical sorters, and on the recycling of the aluminium fraction with eddy current separators.
The facility had an already existing biological treatment plant, we design an over-head conveyor system to transport the fine fraction from one hall to the other.

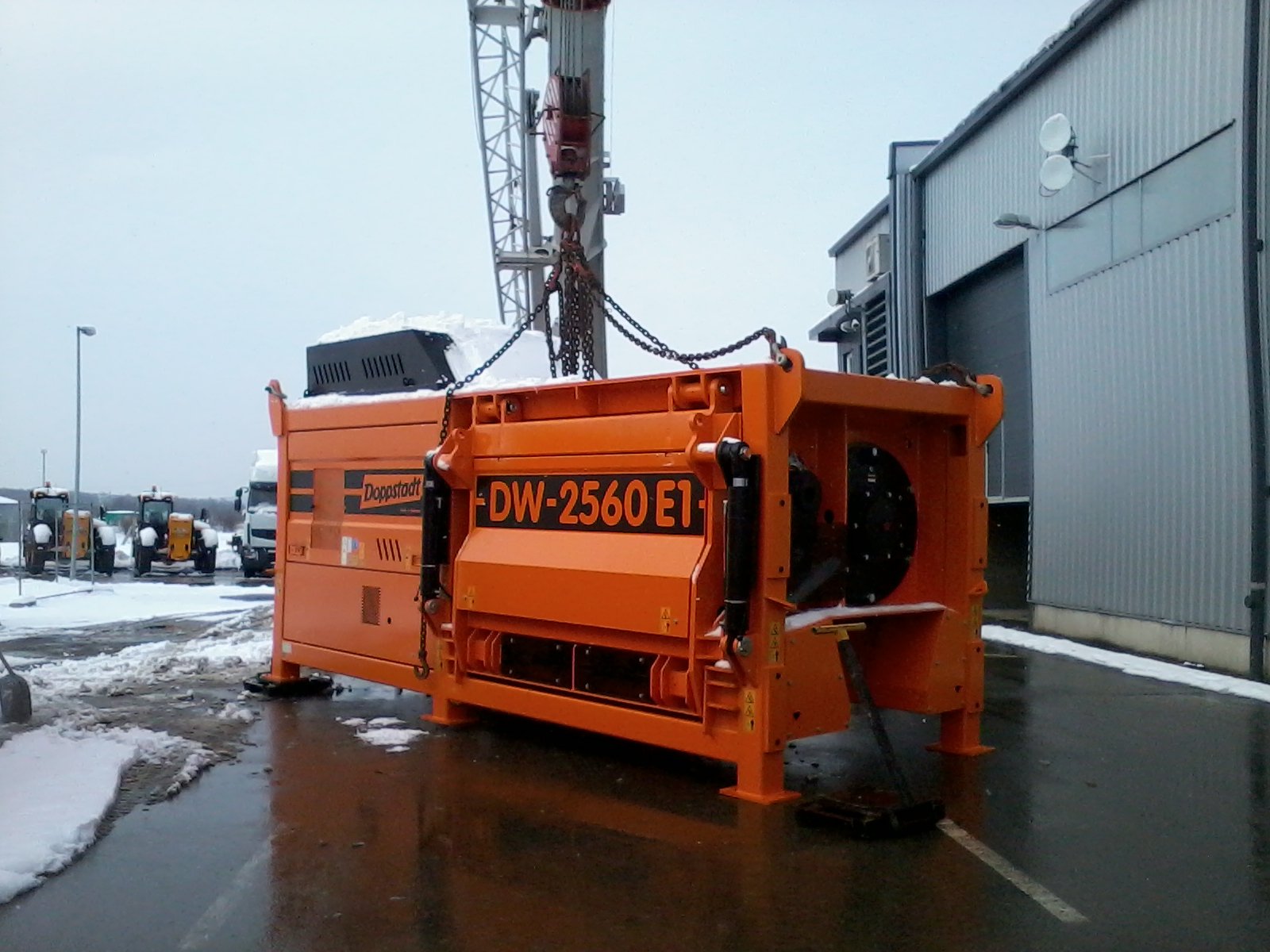

It was March 2013 with 15 cm of snow
2015 at the Optical NIR sorters
Homescreen of the control system
Location: Királyszentistván, Hungary
Material: mixed household waste
Capacity of the plant: 150.000 tons/year
Built in 2013
Machines built in the technology line:
- 1 unit of DOPPSTADT DW 2560 E pre-shredder
- 1 unit of DOPPSTADT SST 725 E trommel screen
- 1 unit of NIHOT SDS1000+WSS1000 wind-sifter
- 2 units of STEINERT NES 100 200 CANMASTER Eddy current separator
- 2 units of STEINERT UNISORT P2000 optical sorter
- 1 unit of DOPPSTADT DF 307 ROTARO secondary shredder
- 1 unit of LUDDEN & MENEKES STV 10000 pre-chamber press
- Conveyor belts, steel structures, control cabinets
